Garador ORIGINAL Retractable Garage Door Springs (SINGLE WIDTH DOOR)

Trustpilot
Garador ORIGINAL Retractable Garage Door Springs (SINGLE WIDTH DOOR)

Saturday /Sunday Delivery Available

Saturday/Sunday delivery available for orders placed between Thursday 12 pm Mid-Day - Friday 12 pm Mid-Day

Calculate Shipping Cost

Enter your postcode into the box below. Cost displayed is for all items in your basket. To View our shipping rates please click here.

Post Code:
Calculate Shipping Cost (Entire Order)

Spring Finder

Click the button below to view the Spring Chart to help you find the correct spring.

SPRING FINDER
Garador ORIGINAL Retractable Garage Door Springs (SINGLE WIDTH DOOR)
Ask a question about this product
  • Stock: In Stock
  • Model: Garador Retractable Springs (Single)
Garador Garador
Based on 1 reviews. - Write a review
£56.95
Ex Tax: £47.46

Available Options

Add to Cart
Checkout using Credit/Debit Card
Add to Wish List
  • When replacing garage springs, it is recommended to replace both sides at the same time, to ensure the spring tension and door remain balanced.

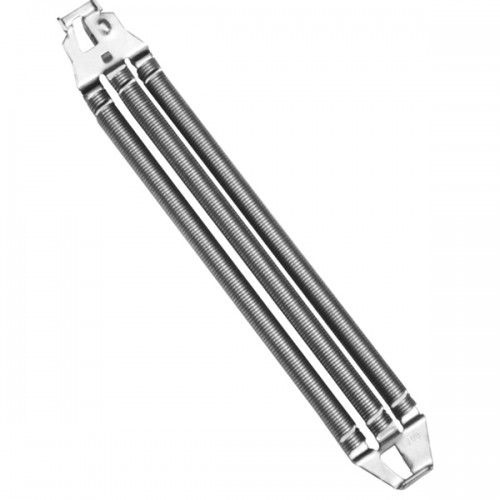

  • Garador spring block assembly to suit Retractable & Retractable Plus single width garage doors (manufactured after 2002) which have a block of 3 springs either side of the door.

  • This item is sold as one single spring assembly which consists of 3 springs and top and bottom brackets.  They are NOT handed.

  • There are 4 variations, please identify by using our spring chart. Check out your existing springs for the number which will be stamped on the end of the original bracket;

    Spring 001: (current part no: 52)
    Spring 002: (current part no: 53)
    Spring 003: (current part no: 54)
    Spring 004: (current part no: 1226)

    Please note, some of the double-width doors have a code of 001, 002 or 003. In effect, on these doors, they use 2 single-width clusters per side to make 6 springs.

  • Wire Diameter 1.5mm

  • Number of Coils 130

  • Overall Diameter 14mm

  • Length Excluding Hooks 330mm

  • Please note, the 004 springs are longer - approx 445mm long across the coils

  • If you need any help identifying your door or spring required, please give us a call

Spring Specification
Door Width Single
Spring Diameter 14mm
Spring Wire Diameter 1.5mm
No. of Coils 330
Spring Length 330mm
